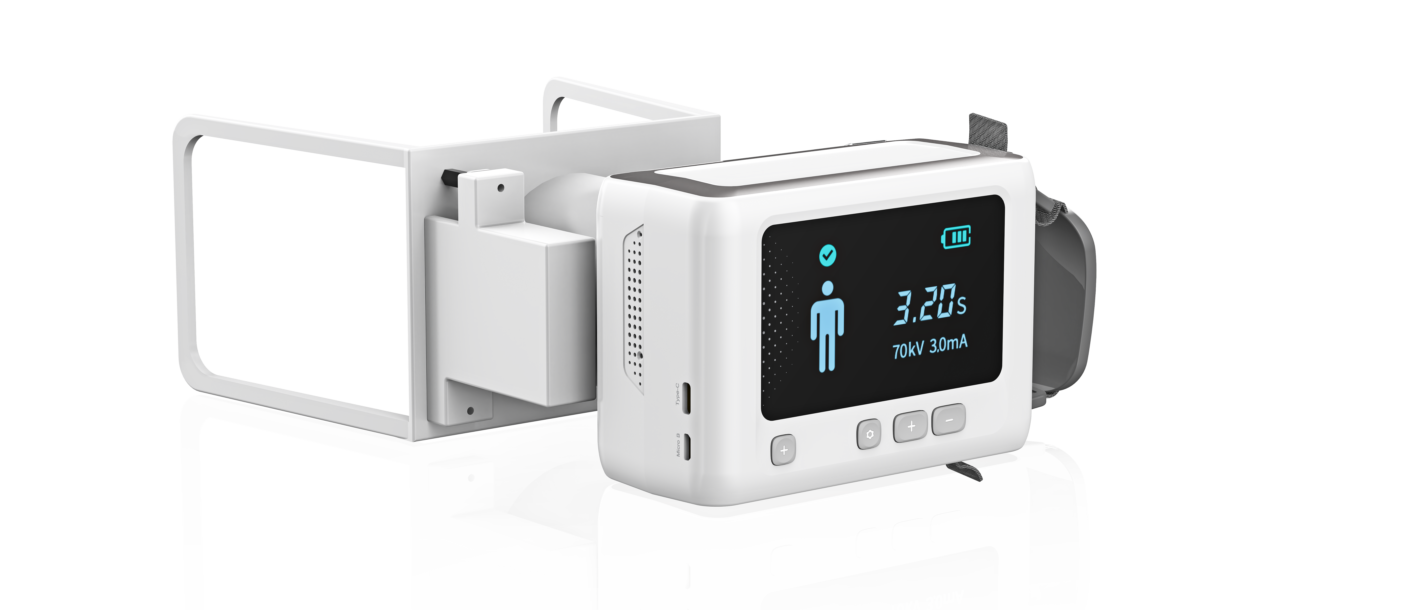

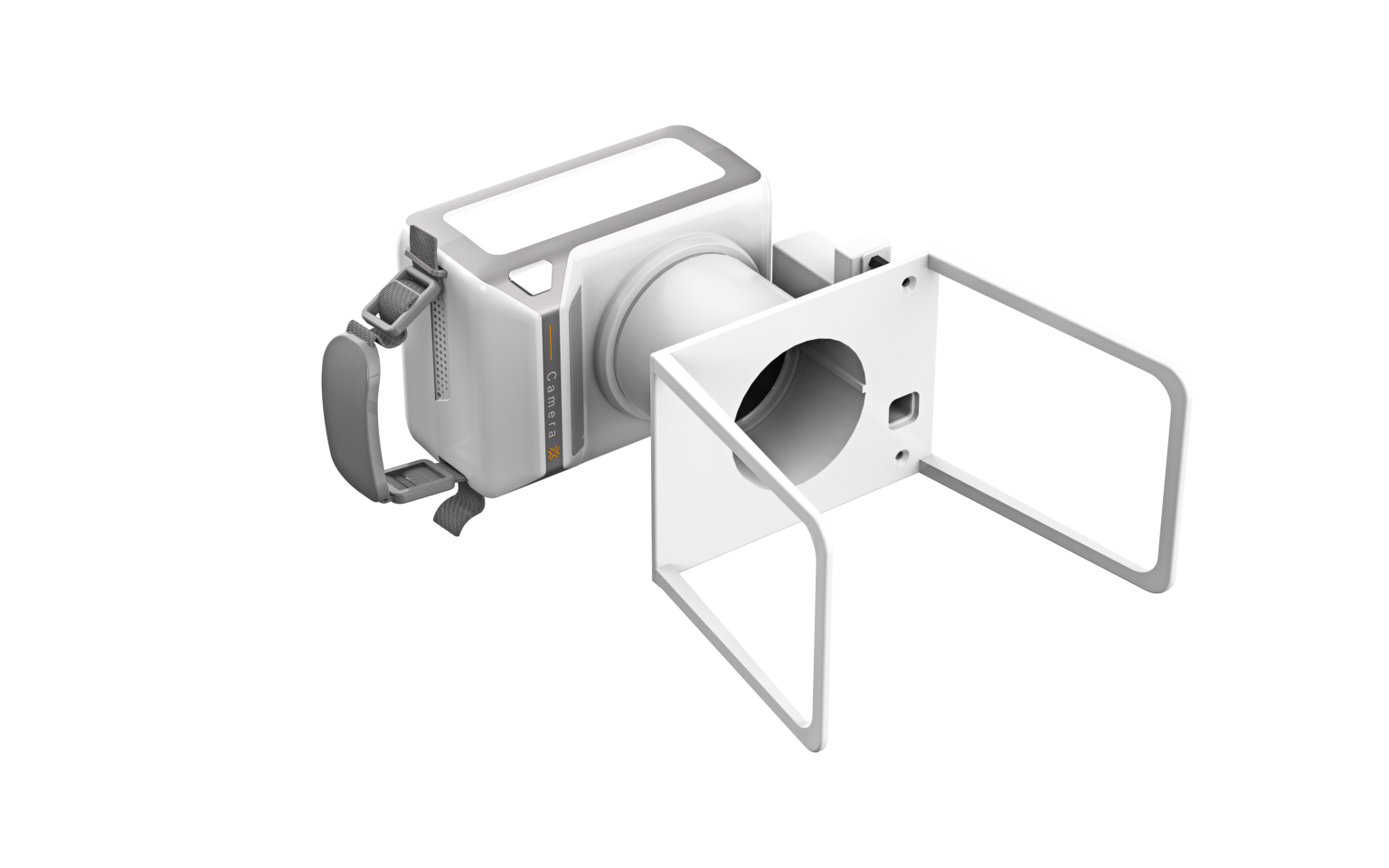

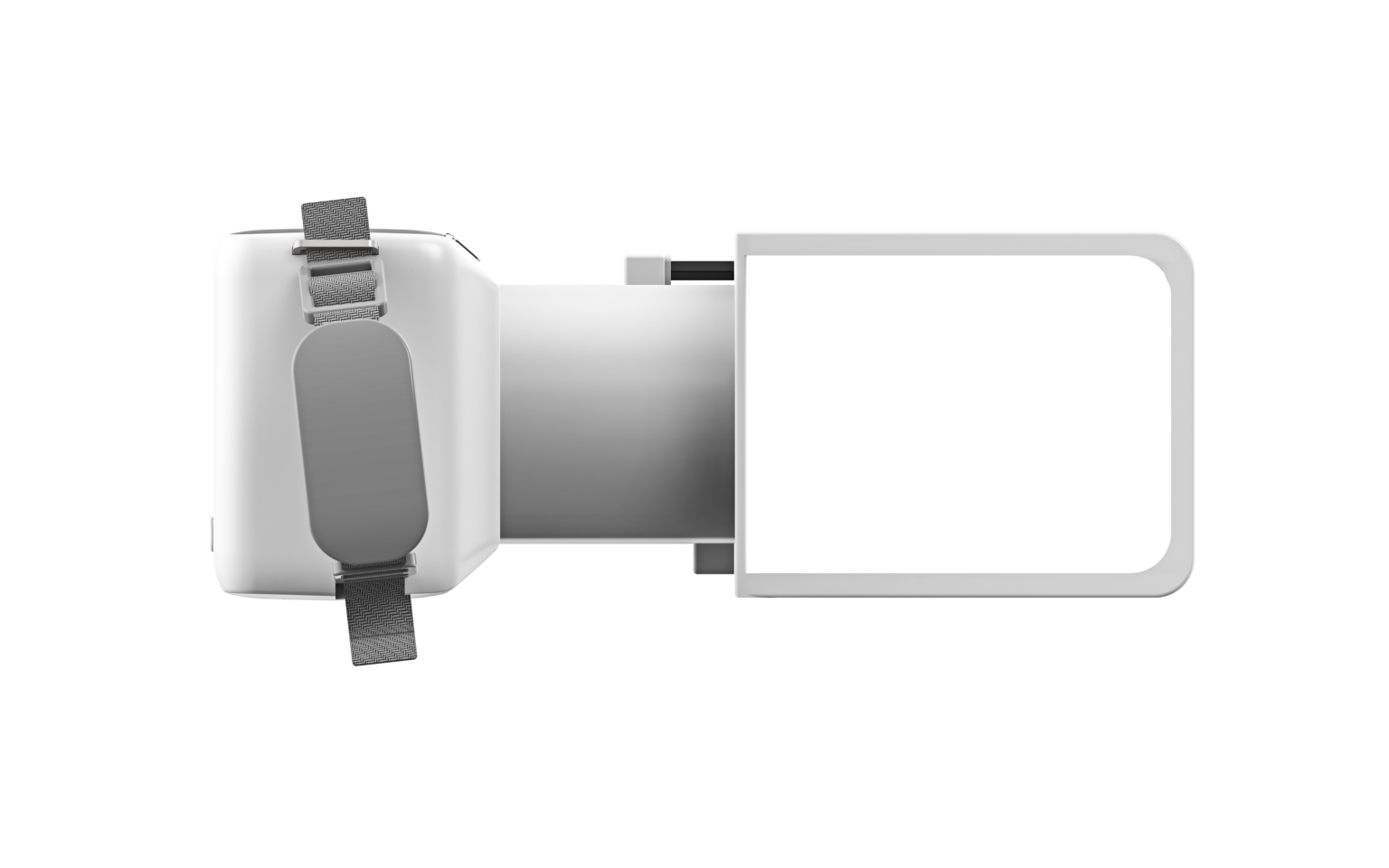

Handheld X-Ray Camera
Ultra-Portable Imaging for On-the-Spot Diagnostics & Screening
Compact, Reliable, and Ready for Action
The Handheld XP Series is a lightweight, portable X-Ray Camera designed for quick diagnostics, screening campaigns, and mobile healthcare applications. Delivering exceptional image quality with low radiation exposure, this compact system is built for challenging environments — from rural clinics to mobile outreach programs.
Whether used alone or in combination with AI-powered diagnostic tools, the Handheld XP Series supports effective screening, early detection, and improved access to care in underserved communities.
Key Features of the X-Ray Camera
- Ultra-Lightweight (1.5 kg) — Easy to handle and operate in various field conditions
- Battery-Powered Operation — Up to 100 exposures per full charge for mobile use
- Simple Hand-Switch Control — Enhances ease of use in busy or remote settings

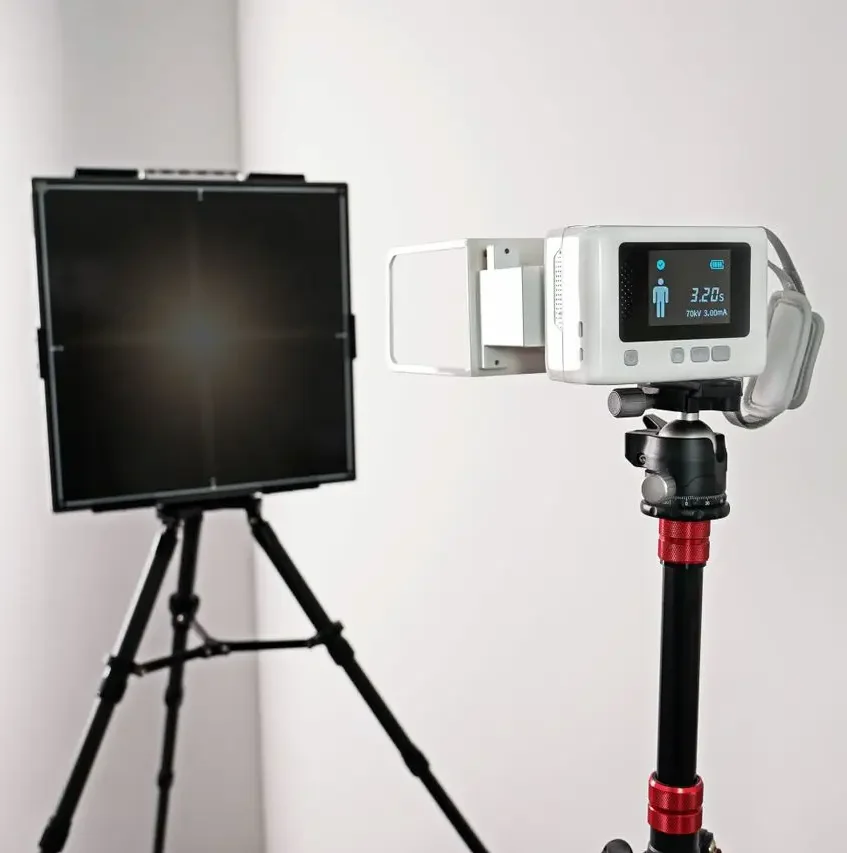

- Optional Flat Panel Detector (CsI, 14x17”) — For high-resolution digital imaging when paired with PACS or AI tools
- Compact Design (241×130×91.5 mm) — Ideal for confined spaces and portable setups
- Low Radiation Exposure — Safe for both patients and operators
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Power | 210 W |
| Voltage Range | 40 – 70 kV |
| Current Range | 1 – 3 mA |
| Focal Spot Size | 0.4 mm |
| Anode Target Angle | 12° |
Ideal for
- Community Screening Campaigns — When combined with AI analysis tools for enhanced detection
- Remote & Rural Healthcare Services — Easy deployment in hard-to-reach areas
- Emergency & Field Diagnostics — Quick imaging in time-sensitive situations
- Veterinary Applications — Versatile use for small animal diagnostics
Why Choose the Handheld Camera XP Series?
- Compact yet powerful imaging solution
- Supports screening initiatives and mobile health programs
- Seamless integration with AI and digital health platforms
- Backed by IHD’s technical support and regional service network
